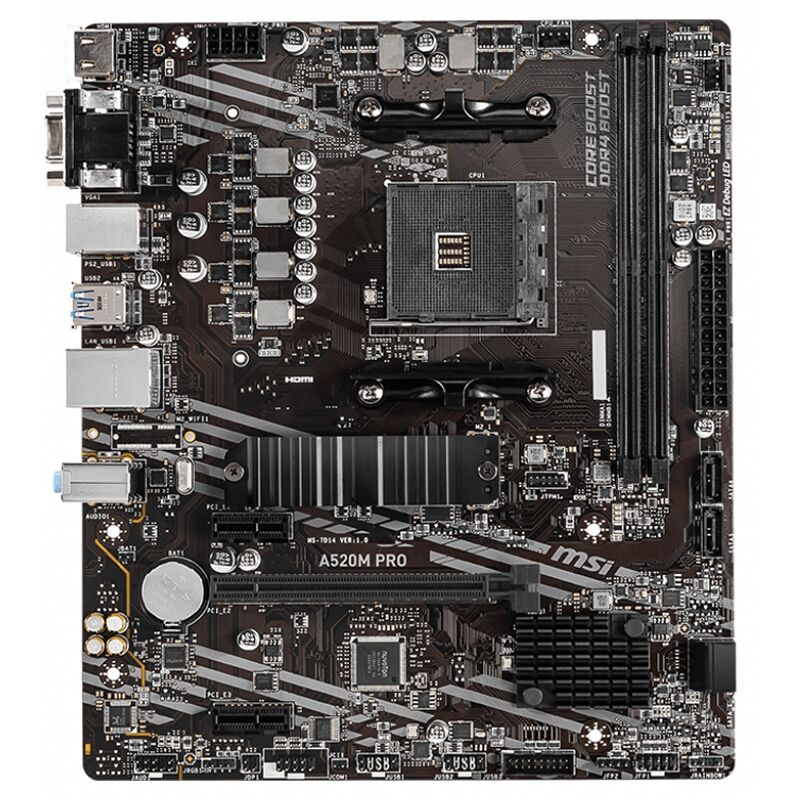

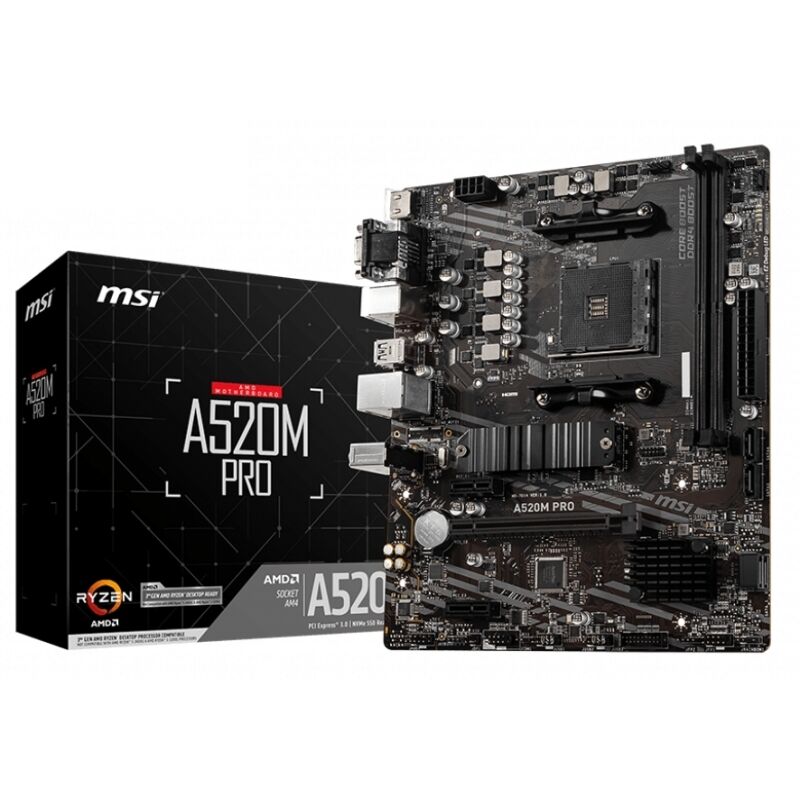

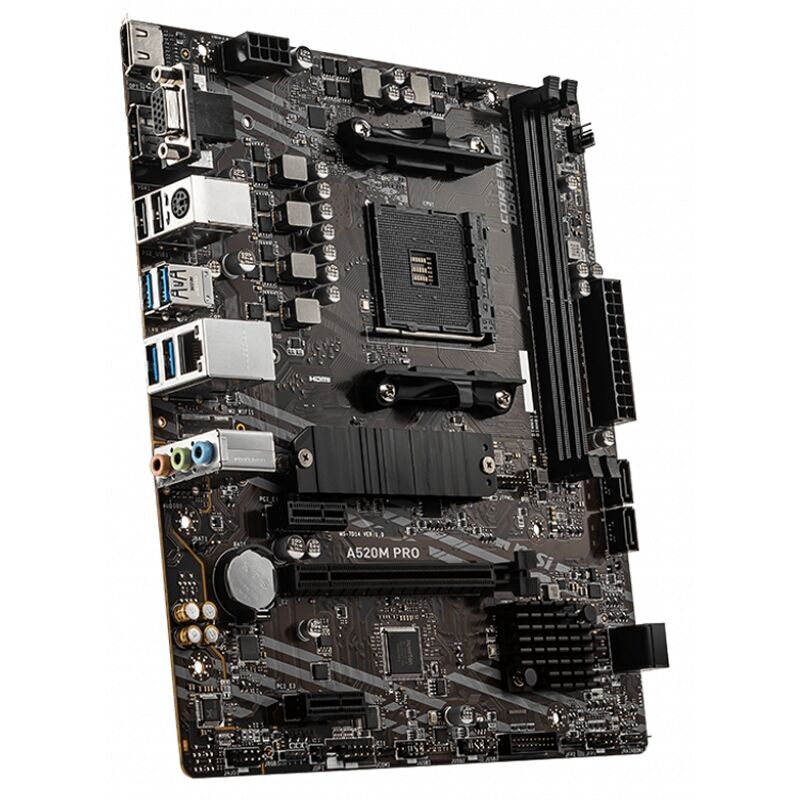

MSI Placa Base A520M PRO mATX AM4
66€
Hay existencias
Descripción
Marca | msi |
Modelo | A520M PRO (911-7D14-011) |
Plataforma | – M-ATX (24.4 cm x 21 cm) |
Chipset | – AMD® A520 chipset |
CPU Soportado |
– Admite AMD® Ryzen ™ 1st, 2nd y 3rd Gen Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors |
Memoria | – 2 x DDR4 memory slots, hasta 64GB Soporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Soporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE – 1DPC 1R max speed 4600 MHz – 1DPC 2R max speed 3866 MHz – Dual channel memory architecture – Soporta non-ECC UDIMM memory – Soporta ECC UDIMM memory (non-ECC mode) – Soporta un-buffered memory |
Slots Expansión | – 1 x PCIe x16 slot (PCI_E2) – 2 x PCIe 3.0 x1 slots |

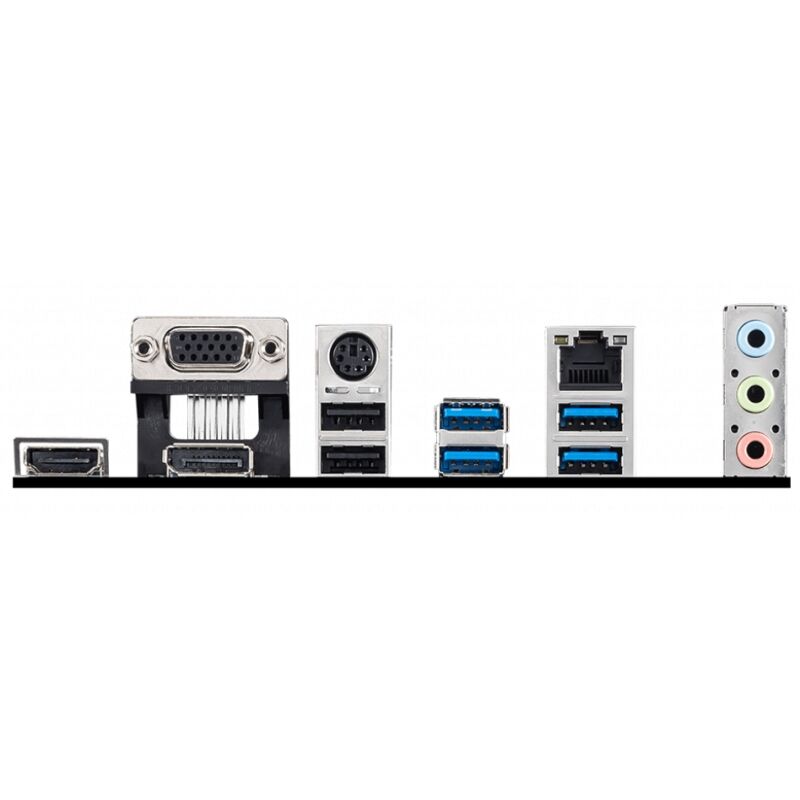

Gráficos | – 1 x VGA – 1 x HDMI 2.1 – 1 x DisplayPort |
Puertos E/S,
Conectores
|
Internos
– 1 x 24-pin ATX main power
– 1 x 8-pin ATX 12V power – 4 x SATA 6Gb/s – 1 x Serial port – 1 x M.2 slot (M-Key) – 1 x USB 3.2 Gen 1 5Gbps – 2 x USB 2.0 – 1 x 4-pin CPU fan – 1 x 4-pin system fan – 1 x Front panel audio – 2 x System panel – 1 x Chassis Intrusion – 1 x 4-pin RGB LED – 1 x 3-pin RAINBOW LED – 1 x TPM module – 1 x Clear CMOS jumper Externos
– 1 x VGA |
Otras
Características
|
Almacenamiento
– 4 x SATA 6Gb/s ports – 1 x M.2 slot (Key M) RAID – Soporta RAID 0, RAID1 y RAID 10 USB – 2 x USB 3.2 Gen 1 – 6 x USB 2.0 – 4 x USB 3.2 Gen 1 Red – 1 x controlador Realtek® 8111H Gigabit LAN Audio – Códec Realtek® ALC892 – Audio de alta definición de 7.1 canales Montaje |
Fecha Revisión | 04-10-2023 por RTY |
